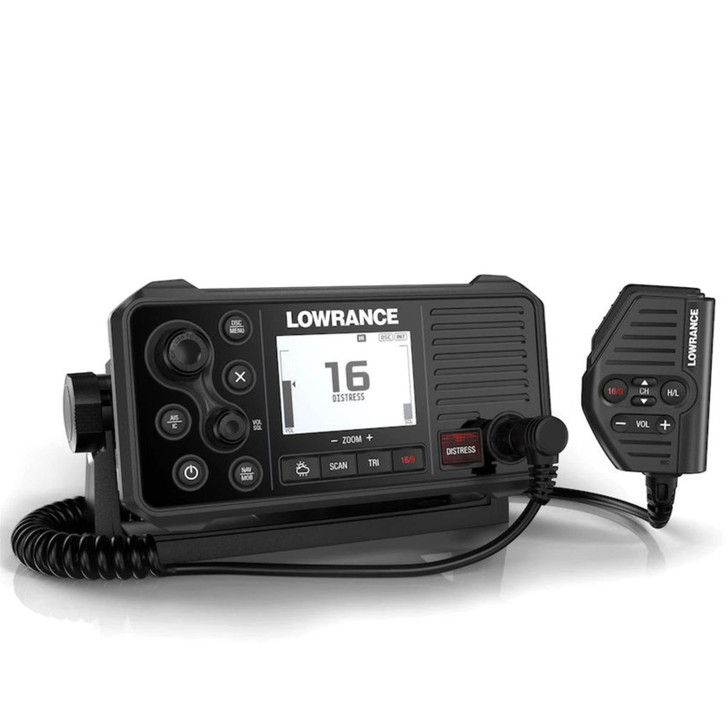

Lowrance Link-9 Marine VHF Radio with Class D DSC & AIS Receiver
PART NUMBER: 000-14472-001
Description
Delivering complete communication anywhere on the water, the Link-9 Fixed Mount VHF radio provides reliable performance and critical safety features including built-in GPS, internal dual-channel AIS receiver with AIS plot functionality, NMEA 2000/0183
GPS 4-Ways With the integrated GPS receiver the Link-9 has four ways to ensure you have a GPS fix in the event of an emergency � built-in antenna, SMA connector for GPS-500 antenna, NMEA 0183 for chartplotter GPS and NMEA 2000 for network antenna connection.
Built-in AIS A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways. AIS information can be viewed on the Link-9�s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
Remote Mountable Fist Mic The Link-9�s removable fist mic can be connected to the front or rear of the radio � optional extension cable allows the radio and mic to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter.
Easier Front-Mount Installation Link-9 features easily removable top and bottom bezels which reveal mounting holes allowing the same style of mounting from the front that is featured on Lowrance MFDs.
Navigation Mode Press the NAV button on the Link-9 to turn it into a navigational instrument displaying your Speed and Course. Link-9 also contains a Man Overboard (MOB) function, hold down the NAV/MOB button to drop a waypoint on your current location and the Link-9 will enter MOB mode to show you how far away you are and where you need to steer to get back to the person in the water. The MOB waypoint is also transmitted over NMEA 2000 to the rest of your network.
Features
Class D DSC fixed mount VHF transceiver
Internal GPS Antenna
Six-button, backlit fist mic with optional remote mounting
Built-in dual-channel AIS receiver with AIS plot functionality
New front mountable mechanical design for easy installation
Seamless integration with a wider Lowrance system through NMEA 2000 and 0183
Large screen with intuitive user interface
25 W / 1 W transmission power
Extra large, high resolution LCD display
MOB feature
Track Your Buddy option
Dual Watch / tri watch and all scan functions
PA/Hailer horn output with Listen Back Feature
10 weather channel
20 user programmable names with MMSI
Fully Waterproof
New Industrial Design to align with style of Lowrance MFD's
VHF Antenna: SO-239 (50 ohm), GPS Antenna: SMA (female)
Brand
Lowrance
Voltage
12V DC, Nominal: 13.6V, Low Battery Alert: 10.5V (+/- 0.5V), Over Voltage Protection: >15.8V (+/- 0.5V)
Fuse
8A, Glass type 3 AG; 32mm (1.25")
Contents
Link-9 VHF Radio, Mounting Bracket, Knobs & Screws, Suncover, Mic Mount Clip, Fist Mic & Flush Mount Kit
Approvals
CE, EN 62311:2008, EN 60950-1:2006 A11:2009 A1:2010 A12:2011 A2:2013, EN 60945:2002, EN 301 843-1 V2.2.1, EN 301 843-2 V2.2.1, EN 301 025 V2.2.1, EN 300 698 V2.2.1, EN 303 413 V1.1.1
Consumption
Transmit: ? 6A at 25W / 1.5A at 1W, Receive: < 820mA in standby
Temperature Range
-20�C to +55�C (-4�F to 131�F)
Protection Rating
IPx7
What's in the Package?
Lowrance Link-9 Marine VHF Radio with Class D DSC & AIS Receiver
Link-9 VHF Radio
Link-9 VHF Suncover
Link-9 Remote Mountable Fist Mic
Link-9 Fist Mic mounting clip
Link-9 VHF Mounting bracket with Knobs and Screws
Link-9 VHF Flush Mounting Kit
Comes in Retail Packaging so makes a Great Gift.
