Optional Rear Parking Sensors designed for SPH-10BT and SPH-20DAB.

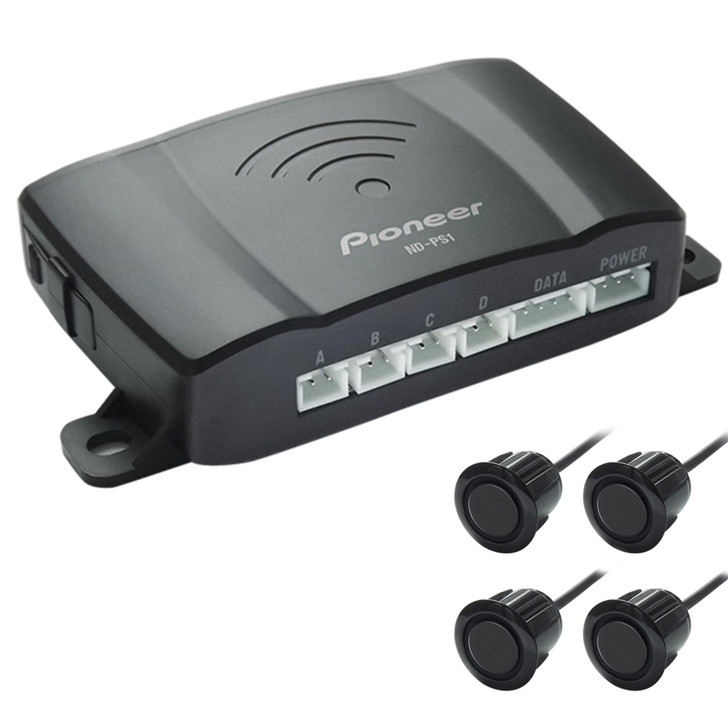

Pioneer's optional rear parking sensors ND-PS1 are easy to install and are designed to be connected directly to Pioneer's SPH-10BT or SPH-20DAB. When connected, you can park easily and safely thanks to the audio and visual illumination warnings on the headunit.
Additionally, when used in conjunction with Pioneer's SPH-10BT, SPH-20DAB and Pioneer Smart Sync app, you can also experience the parking assist display on your compatible smartphone screen.
Specifications
Control
box specification
Nominal
voltage
14.4 V DC
Operating voltage
10.8 ~ 15.1 V DC
Rated current
10 ~ 30 mA at 14.4 V
DC
Detection Range
0.3 m ~ 2.5 m
Dimensions (WxHxD)
105.3 mm x 21.8 mm x
56.0 mm
Operation
temperature range
-30�C ~ 80�C
Weight
50 g / 1 pc
Cable length
Power cable
1 m
Connection cable:
5 m
Sensor
specifications
Center
frequency
40 kHz
Directivity X-axis
70�
Directivity Y-axis
70�
Maximum input
voltage
120 Vp-p (at 40 kHz)
IP code
IP67
Dimensions
? 23.5 mm x 19.8 mm
(exclude cable)
Cable length
2.5 m
What's in the Package?
Pioneer Optional Rear Parking Sensors - Black
