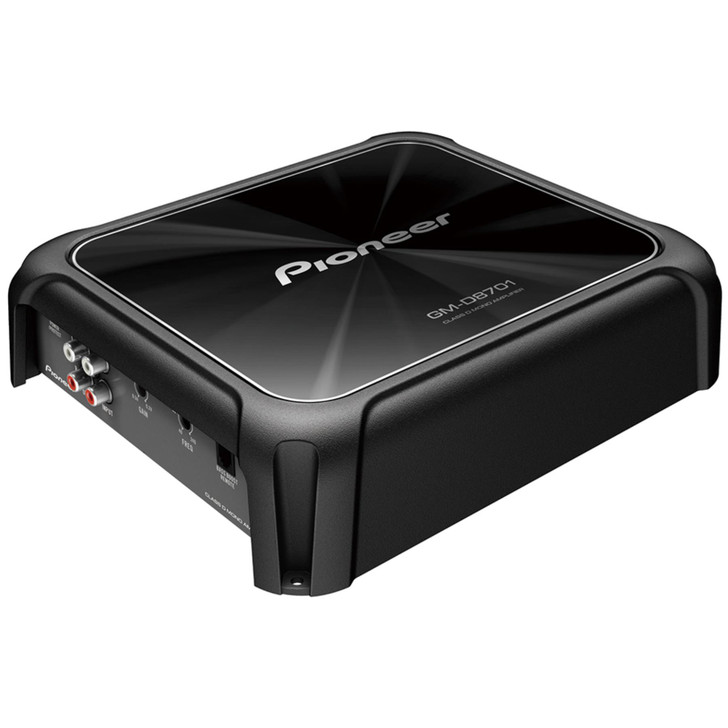

Pioneer Genuine GM D8701 Mono Class-FD Car Amplifier
PART NUMBER: GM D8701
Description
Compact Power
An amplifier shouldn�t take up too much space, especially in your car. This Class-D amps might just be what you�re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.
Features
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output
D-classenjoy first class sound and powerful volume on a versatile system at half the size of other units
Specifications
Variable LPF
?
D-class
?
Channel(s)
1
RCA terminals
yes
Speaker Terminals
Block-type
LPF
yes
Maximum power
1 x 600W (4?) 1 x 1000W (2?) 1600W (1?)
Continuous power output
1 x 300W RMS (4?) 1 x 500W RMS (2?) 1 x 800W RMS (1?)
Frequency response
10 Hz - 240 Hz
Input level control
RCA (0,2V - 6,5V) SP (0,8V - 16V)
Distortion
< 0,05 %
S/N ratio
> 100dB
Chassis size (W x H x D)
302 x 60 x 215 mm
Bass Boost
Yes, bass boost remote included
Bass Boost Remote
?
Crossover Frequency
40 - 500Hz (-12 dB/oct) Hz
Mono
?
Connections
Multi-block Terminal
?
What's in the Package?
Pioneer Genuine GM D8701 Mono Class-FD Car Amplifier
Comes in Retail Packaging so makes a Great Gift.
Buy with Confidence & All Purchases come with a VAT Receipt by email.
