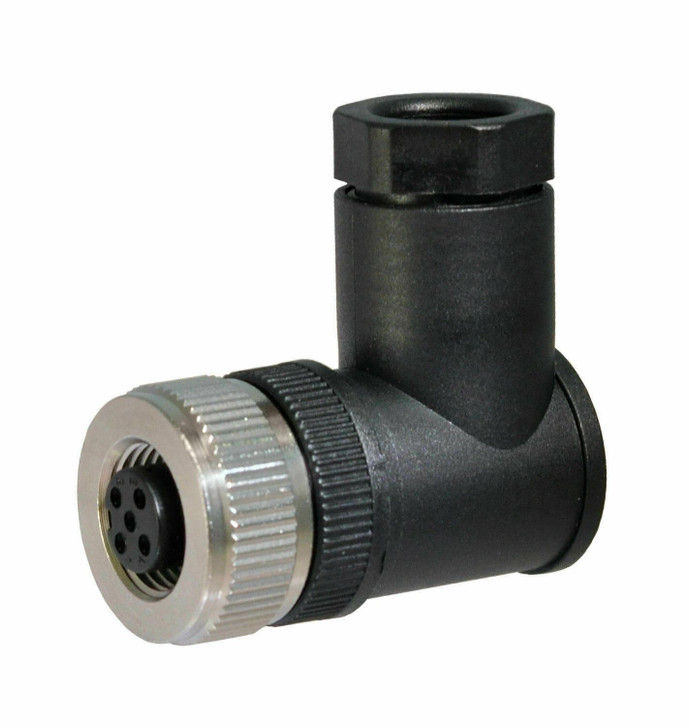

Actisense NMEA 2000 Connector - Micro field fit, Right Angle - Female
PART NUMBER: A2K-FFC-RF
Description
Field fit connectors allow full customisation of your NMEA 2000 network cabling
The Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Micro cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.
The right angle options can be fitted at a number of angles to allow ease of installation from the desired entry point.
Male and female variants, as well as right angled options for each, provide full flexibility and make it easy to install cable around tight bends.
The Field Fit Connectors are the perfect complement to the Actisense 100M Bulk Reel of cable.
Features
Allows for secure, reliable connections in any NMEA 2000 installation using Micro cable
Provides full flexibility and easy to install
The perfect complement to the Actisense 100M Bulk Reel of cable
Can be fitted at a number of angles to allow ease of installation from the desired entry point
Specifications
Electrical
Rated Current
4A
Rated Voltage
60VDC
Mechanical
Connector Contact
Brass, gold plated
Wire Gauge/Size
22 AWG/0.34mm
Contact Resistance
≤ 5 mΩ
Contact Polarisation
Standard M12 -“A”- polarisation
Mating Thread
M12
Connector Screw
Stainless Steel
Sealing Gland Size
PG9/6-8mm Cable
O-Ring Seal
Rubber, black
Connector Insert
TPU
Connector Body
PA+GF, black
Insulation Resistance
≥ 100 MΩ
Weight
27.8g
Approvals and Certifications
Protection
IP67 (in locked condition)
Ambient Temperature
-25°C to +90°C
What's in the Package?
Actisense NMEA 2000 Connector - Micro field fit, Right Angle - Female
