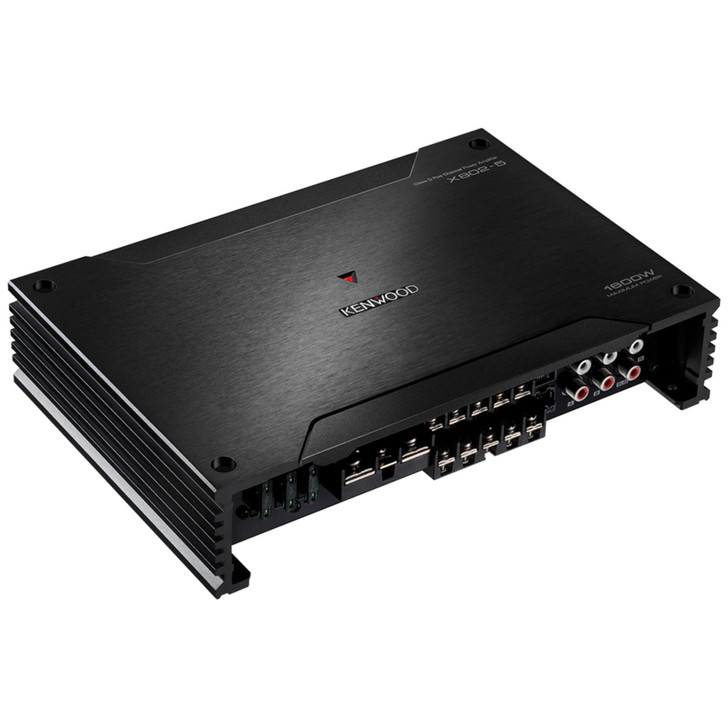

Kenwood X802-5 5-Channel Car Power Amplifier - Black

(No reviews yet) Write a Review

Current Stock: 1

£280.79

RRP: £299.99

You save £19.20

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

1 Year Manufacturer

1 Year Manufacturer

PART NUMBER: X802-5

Class D Amplifier	Yes
Full Range Digital Amplifier	Yes
Load Capability	2? Stable
Rated power output (4?)	50W x 4 (4?)
Rated Subwoofer power output (4?)	300W x 1
Rated power output	75W x 4 (2?)
Rated Subwoofer power output (2?)	500W x 1
Bridged power output (4?)	150W x 2
High-Resolution Audio certified	Yes
CEA-2006 Compliant	Yes
Low-pass Filter	Yes
High-pass Fliter	Yes
Switched Mode Power supply	Yes, with Power MOS-FET
Signal Sensing Turn-on	Yes
Speaker level Input	Yes
Single Side Terminals	Yes
Die-Cast Aluminium Heat Sink	Yes
Removable Coverplate	Yes

Rated power output (4?, 14,4V)	50W x 4 (20Hz ~ 20000Hz, 1%THD)
Rated subwoofer power output (4?, 14,4V)	300 W (20Hz - 200Hz, 1% THD)
Rated power output (2?, 14,4V)	75W x 4 (1000Hz, 1%THD)
Rated subwoofer power output (2?, 14,4V)	500W (100Hz, 1% THD)
Rated power output (CEA-2006)	50Watts RMS x 4 at 4 ohms and 1% THD
Rated subwoofer power output (CEA-2006)	300W
Low-pass Filter	50~200Hz (-24dB/oct)
High-pass Fliter	50~200Hz (12dB/oct)
Bass Boost Circuit	40Hz, 18dB (B-Channel)
RCA Input Sensitivity	0.2 ~ 5V
Speaker Level Input Sensitivity	4 ~ 12V
Input Impedance	10k?
Signal to Noise Ratio	100dB
Signal to noise ratio (CEA-2006)	80dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -1dB)	20Hz ~ 50000Hz
Freq. resp. (+0dB, -3dB) (SUB)	20Hz ~ 200Hz
Operating voltage	14.4V (11V ? 16V allowable)
Maximum current consumption	42A
Installation Size (WxHxD)	248 x 53 x 169 (mm)
Weight	2.1kg
