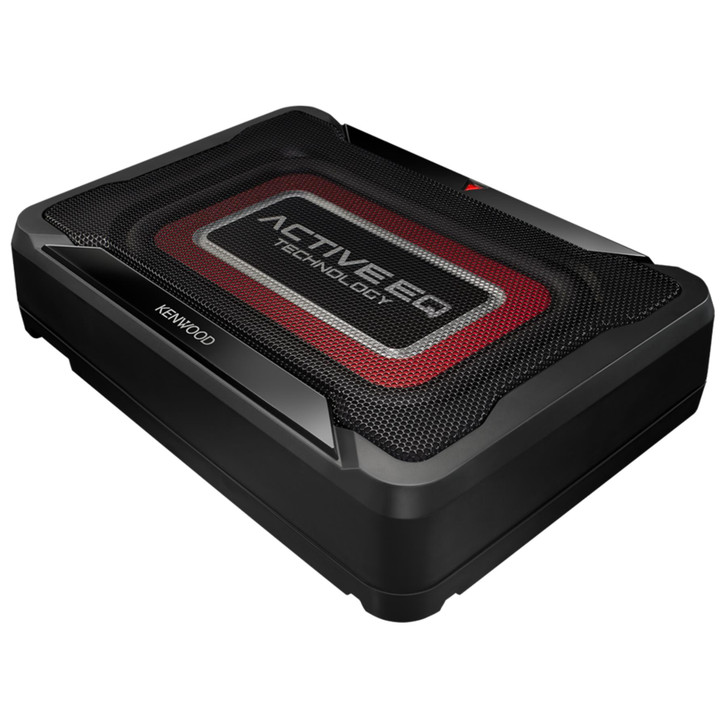

Powered Enclosure Subwoofer with Active EQ Technology
The compact die-cast enclosure allows installation almost anywhere, including tight spaces such as under a seat or panel. Features the built-in high efficiency class-D amplifier, 200 x 130mm aluminum diaphragm with micro-step shape reinforcement. This micro-step suppresses the unwanted movement of the diaphragm and reproduces accurate and powerful bass sound. The newly developed ACTIVE EQ TECHNOLOGY with three types of bass curves, to match the music of various genres, delivers super-live sound experience . With the wired remote you have full control of the powered subwoofer.
Amazing Performance from Compact Box
Large Aluminum Woofer Cone.
Larger aluminum diaphragm (200 x 130mm) for more woofer stability, ensuring that the bass is deep and clear.
Micro-step Shape.
KSC-PSW7EQ has a micro-step shape on the long side of the diaphragm surrounding. This suppresses the unwanted movement of the diaphragm, and supports accurate vibration and reproduces accurate bass sound to the music.
High Roll Urethane Surround.
The Urethane surround provides long, linear excursion for excellent control and better focussed bass.
Compact Die-cast Enclosure.
Design with larger enclosure volume and wider diaphragm area enables heavy bass reproduction.
Allows for installation almost anywhere, including tight spaces such as under a seat or panel.
Wired Remote Control
POWER INDICATOR.
When the power is turned on, the indicator lights in red.
VOLUME CONTROL.
Adjust the power output to the desired output level.
3 MODE ACTIVE EQ (Equaliser Control swith).
Selector Switch to select out of three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.
FREQUENCY CONTROL.
Adjust the cut-off frequency (frequencies higher than this frequency are cut off).
Turn the FREQUENCY control knob to adjust the balance between the bass from the rear speakers and the bass from this unit as desired.
Phase Selector Switch.
The low frequency tone may be variable depending on the position of the unit, its orientation or the turn-over frequency.
This can be adjusted by changing the position of the PHASE switch
ACTIVE EQ TECHNOLOGY
3 MODE ACTIVE EQ Control: Three types of bass settings to match the music of various genres.
HEAVY:
Deep and intense bass sound
FLAT:
Natural and smooth bass sound
TIGHT:
Rich and clean bass sound.
Features
160W Maximum output power for deep and intense bass sound.
ACTIVE EQ TECHNOLOGY with three types of bass to match the music of various genres.
200 x 130mm Aluminum woofer cone with micro-step shape diaphragm surrounding.
High efficiency class-D amplifier for rich and clean bass sound.
Wired remote with Power indicator, Active EQ switch, Volume & Frequency contr. & phase switch.
Line-in & speaker level input with signal sensing turn-on.
Compact aluminum die-cast enclosure (280 x 70 x 220mm).
Connection cables and Installation brackets included.
Specifications
Speaker Features
Speaker System
Active subwoofer system
Maximum Output Power
160 W
Speaker Size
200 x 130mm
Wired remote included
Yes
Amplifier Included
Built-in
Enclosure type
Aluminum die-cast
Enclosure size (BxHxD)
350 x 75 x 240 mm
Enclosure net weight
2.6 kg
Amplifier Features
Class D Amplifier
Yes
Maximum power output
160W
Low-pass Filter
Yes
Phase inverter
0�(Normal) / 180�(Reverse)
Yes
Built-in Equalizer
Yes
Power Indicator
Yes
Signal Sensing Turn-on
Yes
Line in
RCA
Speaker level Input
Yes
Chassis
Aluminum Die-cast
Wired Remote Support
Power indicator / Volume / Active EQ /
Frequency / Phase
