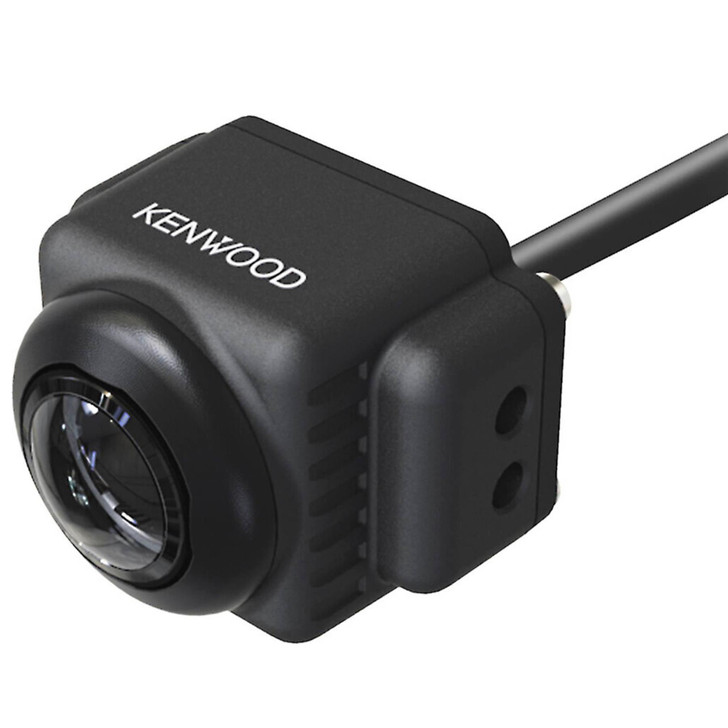

PART NUMBER: CMOS 740HD
Rear / Front Camera for DMX9720XDS |
High-Definition Imaging (1280 x 720px) |
HDR (High Dynamic Range) |
IP67 Waterproof and dustproof |
Wide angle lens, focal length: 1.86mm F:2.0 |
Horizontal 180/ Vertical 103 angles of view |
HD-TVI output signal |
Total cable lenght: 9 meter |
Camera Type | 1/3.8-inch colour CMOS sensor |
Number of pixels | 1280 (Vertical) x 720 (Horizontal) |
Effective number of pixels roughly | 1300000 |
High sensitivity Pixels | Yes |
Output video | HD-TVI |
Waterproof chassis | Yes |
Mounting system | Fix mount base |
Installation positions | Front or rear |
Rear view switching | Reverse line |
High voltage protection | Yes |
Wide angle lens | Yes |
Focal length | f: 1.86mm, F value 2 |
Horizontal Angle view | +/- 180 |
Vertical Angle View | +/- 103 |
Illumination range | approx. 1 to 100 lux |
White balance | HDR |
Video signal format | HD-TVI |
Camera cable to power supply box | 3 meter |
DC cord | 6 meter |
Operating voltage | 12V (12 ~ 24V Allowable) |
Dimensions Hideaway Unit (WxHxD) | 69.2 x 23.6 x 15.5mm |
Dimensions (WxHxD) | 31.1 x 23 x 25.2mm |
Weight | 33.2 gr. |
Operation Temperature Range | --30C ~ 85C |
Instruction Manuals | Multi-language quick Guide |
