Ultra-high grade range amplifi ers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.
Features
4-channel digital power amplifier.
Variable high & low pass filter.
Speaker Level Input.
Signal sensing Turn-on.
2 ohms load capability.
CEA-2006 compliant.
Hi-Res Audio compliant.
One side terminals for smart installation.
Screw-type terminals.
Specifications
Class D Amplifier
Yes
Full Range Digital Amplifier
Yes
Load Capability
2? Stable
Rated power output (4?)
50W x 4 (4?)
Rated power output
75W x 4 (2?)
Bridged power output (4?)
150W x 2
CEA-2006 Compliant
Yes
Low-pass Filter
Yes
High-pass Fliter
Yes
Switched Mode Power supply
Yes, with Power MOS-FET
Signal Sensing Turn-on
Yes
Speaker level Input
Yes
Single Side Terminals
Yes
Chassis
Extruded aluminum het sink
design
Rated power output (4?, 14,4V)
50W x 4 (20Hz ~ 20000Hz,
1%THD)
Rated power output (2?, 14,4V)
75W x 4 (1000Hz, 1%THD)
Rated power output (CEA-2006)
50Watts RMS x 4 at 4 ohms and
1% THD
Low-pass Filter
50~200Hz (-24dB/oct)
High-pass Fliter
50~200Hz (12dB/oct)
Bass Boost Circuit
40Hz, 18dB (B-Channel)
RCA Input Sensitivity
0.2 ~ 5V
Input Impedance
10k?
Signal to Noise Ratio
100dB
Signal to noise ratio (CEA-2006)
80dBa (Reference: 1 Watt into
4 Ohms)
Frequency response (+0dB, -1dB)
20Hz ~ 50000Hz
Freq. resp. (+0dB, -3dB) (SUB)
20Hz ~ 200Hz
Operating voltage
14.4V (11V ? 16V allowable)
Maximum current consumption
20A
What's in the Package?

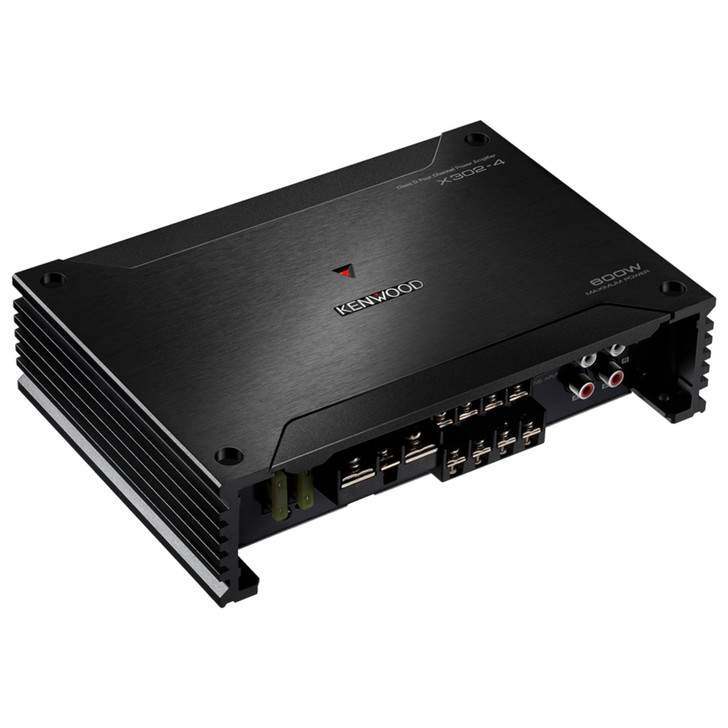

Kenwood Class D 4-Channel Power Amplifier.
