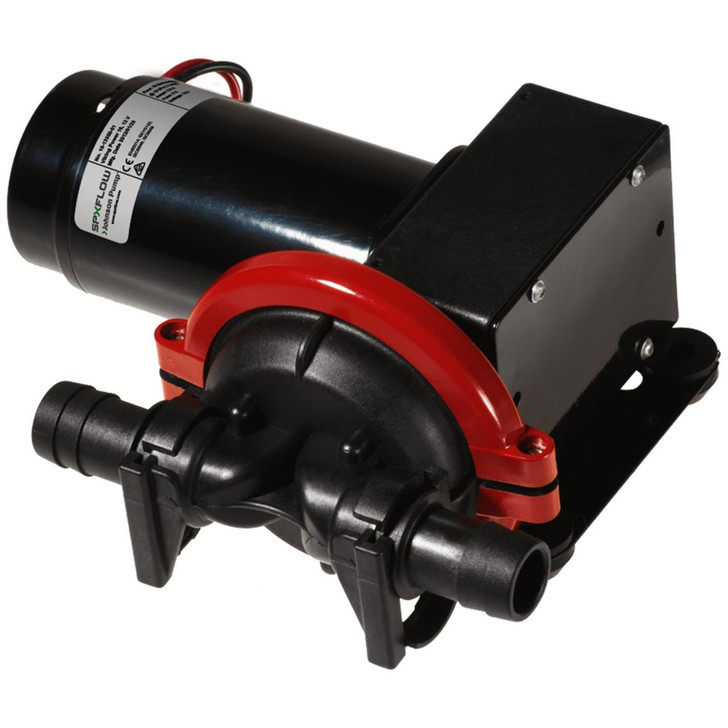

An ultra-modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft - new or used.
Model: Viking Power 16.
12V Part No: 10-13350-03.
Specifically designed to pump wastewater.
Easy to install, even in tight spaces.
Easy, low cost maintenance.
Non-choke valves - no filters required.
Self-priming up to 3m (9.8ft).
KlickTite connectors standard.
Low power consumption.
Perfect for installation in tight spaces, the Viking Power 16 shower drain pump can be incorporated into a small boat wastewater system in several different pump/motor configurations. Compact, robust and adaptable, this pump can be mounted virtually anywhere on board. The Viking Power 16 has KlickTite connectors fitted as standard, literally making hose connections a snap!
Viking Power 16 Spare Connectors:
2 x Straight 1" hose: 09-47117
2 x 90� 3/4" hose: 09-47118
Specifications
Brand
Johnson
Capacity
16 LPM (4.2GPM) open flow (15LPM at 0.1 bar)
Max. head
3m (9.8ft)
Max. lift
3m (9.8ft)
Max. head and lift
4m (13.1ft)
Connections
KlickTite connectors for 1" hose or 3/4" hose and 1/2" BSP
threads; straight and 90� (optional)
Motor
2.3 Amp (12V DC) at 0.1 bar (with built-in thermal protection)
Body
Nylon, glass-fibre reinforced
Valves
Nitrile rubber
Diaphragm
Reinforced nitrile rubber
What's in the Package?
Johnson Viking Power 16 12V DC Diaphragm Pump.
Comes in Retail Packaging so makes a Great Gift.
Buy with Confidence & All Purchases come with a VAT Receipt by email.
