PART NUMBER: 10-24800-01

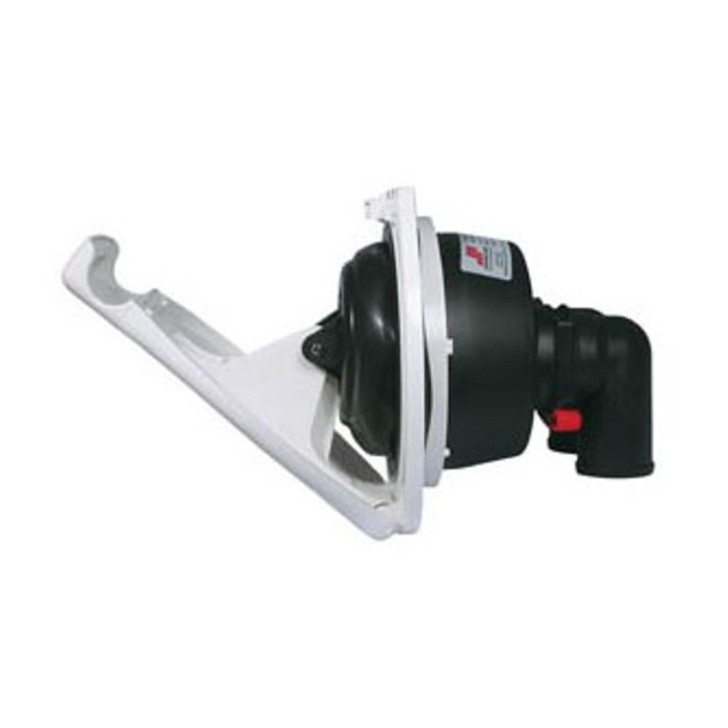

JOHNSON PUMP VIKING COMPACT MANUALLY OPERATED BILGE PUMP
The Viking Compact is a bulkhead fitting, manually operated, self-priming, diaphragm pump designed for bilge pump applications on boats. Complies with ISO 15083 Small craft - bilge pumping systems. Can be used on boats of design categories A, B, C and D.
CAPACITY
Output capacity depends on installation conditions and pumping rate.
Performance given at back pressure (head)of 10kPa (1.45psi) rated for 45 strokes per minute: diameter 38mm (1.1/2") ports, 37.5 lit/min (9.91 USGPM) (594 USGPH).
|
Plastic materials
|
ABS, PA 66, PP |
| Elastomers | Nitrile rubber |
| Shafts | Stainless Steel |
| Connections | 25mm (1") or 38mm (1.1/2") hose connections |
| Max. Liquid temp. | +60C (140F) |
| Storage temp. | -40C to +60C (-40F to 140F), without operation and in dry condition |
| Weight | 0.7kg (1.54lbs) |
| Maximum lift | 2.1m (7') |
| Maximum head | 1.2m (4' ) |
| Maximum combined lift and head
|
3.3m (11') |
