PART NUMBER: 10-24453-05

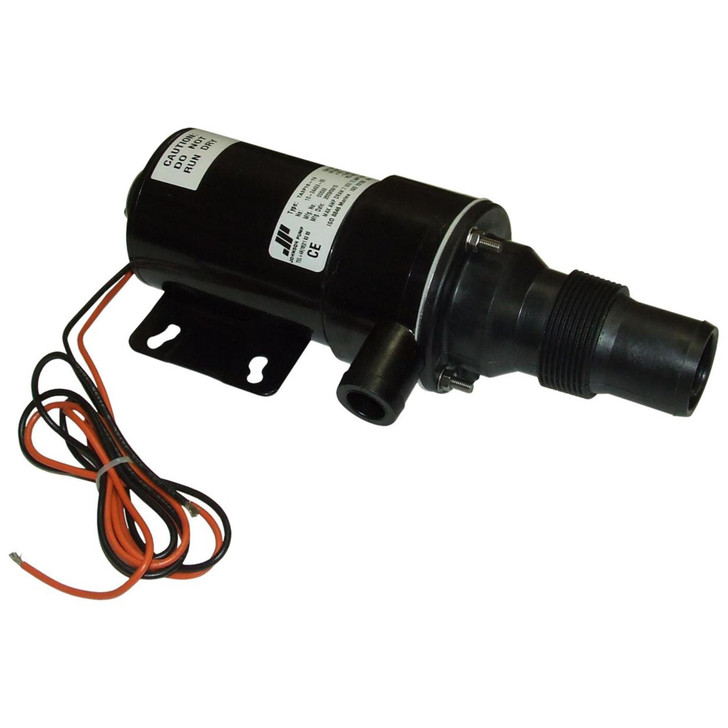

This unit disposes of toilet waste with rotary cutter shredding waste before being put overboard or into a holding tank by incorporated flexible impeller pump. Self priming up to 0.8M and works with vacuum toilets. Steel cased with 4 hole mounting bracket.
CE marked according to the following standards:
Electromagnetic Compatibility Directive 89/336/EEC:
| Pump Body | Phenol plastic |
| Shaft | Stainless Steel |
| Impeller | 09-1052S-9 Nitrile |
| Seal | Lip seal |
| Inlet | 38mm (1/2") Hose or 1/2" BSP |
| Outlet | 25.4mm (1") Hose |
| Motor | 12/24V DC |
| Outlet | Left Hand 25mm (1") ID hose |
| Flow Rate | 37 LPM (9.8 US GPM) |
| Hose Size | 25mm / 1", 38mm / 1-1/2" |
| Self Primes up to | 0.8 Metres (2.7ft) |
| Brand | Johnson |
| Series | TA3P10 |
| Model | 10-24453-05 |
| Voltage | 24V DC |
| Amps | 8A Maximum |
| Fuse | 12A |
| Approvals | CE Listed, Ignition Protected Motor (ISO 8846) |
