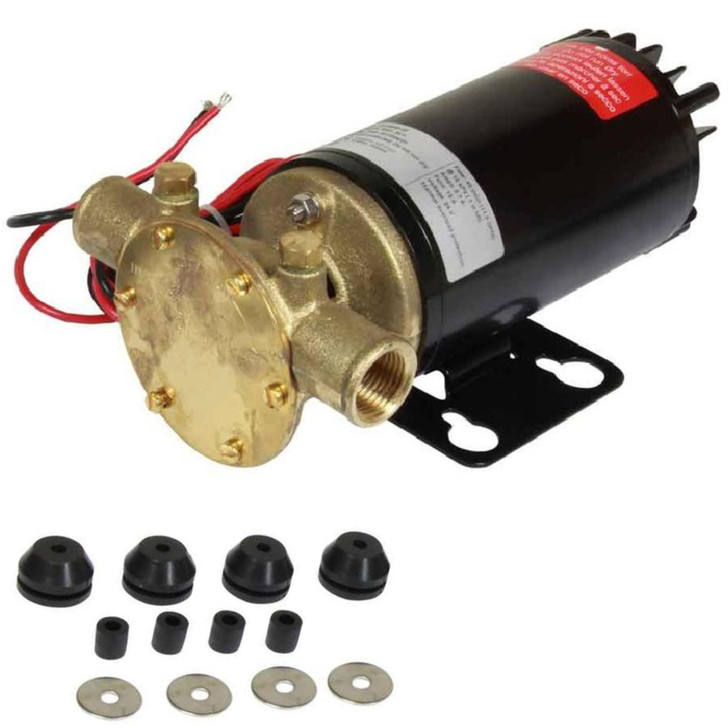

PART NUMBER: 10-24689-02
Heavy duty impeller pump for bilge pumping, deckwash, water circulation, oil and diesel refuelling at dockside service, etc. The motor is 12/24V DC, ball bearing mounted, ignition protected and has a thermal protection to prevent it from over-heating. Vacuum switch & deck wash as extra accessory.
| Motor | 0.25kw. |
| Pump body | Bronze |
| Impeller | 09-824P-9 Nitrile |
| Self primes | Up to 4M |
| Seal | Lip Seal |
| Connection | 1" Hose or 1/2" BSP |
| Self Primes up to | 4 metres (13 Feet) |
| Automatic Bilge Pumps | No |
| Flow Rate 1m | 2700 LPH (714 US GPH) (at 1.8m Head: 2670 LPH (702 US GPH)) |
| Replacement Impeller | JP-09-824P-9 |
| Hose Size | 25mm / 1" |
| Flow Rate at Zero Head | 2880LPH (762 US GPM) |
| Flow Rate at 6 Meters Head | 2040LPH (540 US GPH) |
| Flow Rate at 3 Meter Head | 2460LPH (648 US GPH) |
| Brand | Johnson |
| Series | F4B-19 |
| Model | 10-24689-02 |
| Voltage | 24V DC |
| Amps | 6.5A at 0 Bar & 0 Feet, 7.5A at 0.6 Bar & 20.1 Feet |
| Fuse | 8A |
| Approvals | ISO8846 marine (ignition), ISO8849 marine (bilge pump), ISO10133 Small Craft (Low voltage DC Installations) standards. |
