PART NUMBER: 10-13606-10

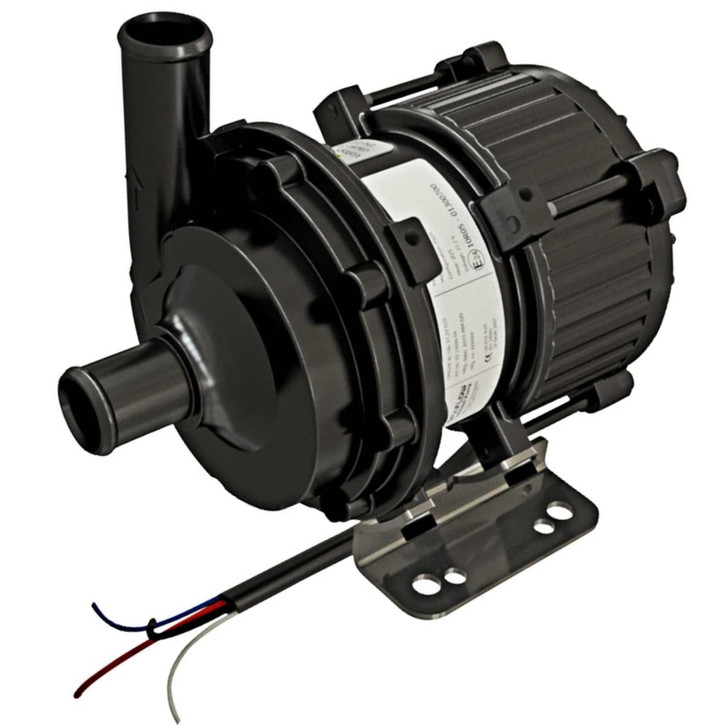

Johnson CM95HP magnetically driven circulation pump with brushless motor.
This heavy-duty seal-less circulation pump features with a brushless motor for continuous use. The pump is ideal for circulation duties such as circulation in heating- and cooling system for boats, buses, trains etc. An all-round pump for when self-priming is not essential.
Motor: Permanent magnet brushless motor with ball bearings and electronics included
Liquid: Fresh water, Water/glycol mixture (max. 60% glycol)
System pressure: -0.2 to 2.5 bar at +100°C (+212°F)
Dry running: 20 minutes maximum
Mounting: Separate universal bracket for flat surfaces
Specifications
| Flow Rate Description | 75 LPM (19.8 US GPM) at 0.6 bar and 6m head, 37 LPM (9.8 US GPM) at 1 bar & 10m Head |
| Material | Black Anodised Aluminium Pump Body, PPS GF Impeller & Hardened Stainless Steel Shaft |
| Hose Tail Size | 25mm / 1" |
| IP Rating | IP6K9K & IP6K7 |
| Continuously Rated | Yes |
| Brand | Johnson |
| Model | CM95HP |
| Voltage Description | 24V DC (27.2V Nominal), Range: 16-32V DC |
| Wattage | Input: 315W maximum |
| Fuse | 20-25A Recommended |
| Approvals | E-Mark, CE & EMC Approved According to: EN55014-1:2006 + A1: 2009 + A2: 2011. EN55014-2:1997 + A1:2001. EN61000-6-3:2007 + A1:2011; Part 6-3. UN Regulation 10 (2004/104/EC: 2004). EN 61000-6-2:2005 |
| Height Description | 162mm |
| Width | 135mm |
| Length | 208mm |
| Weight | 3.2kg (7 lbs) |
| Temperature Range | Liquid: -40°C to +100°C (-40°F to +212°F) |
| Mounting Description | Universal Surface Mount Bracket |
