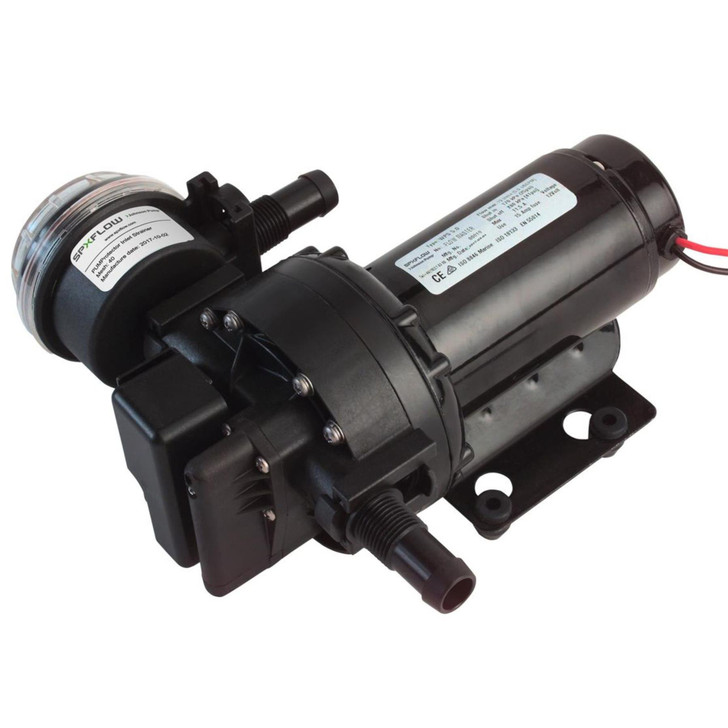

Johnson Aqua Jet Flow Master 5.0GPM 12V Diaphragm Pump
PART NUMBER: 10-13329-03
Description
The Flow Master 5.0 is a five chamber positive displacement diaphragm pump that is an ideal choice for pressurizing water in a closed system such as that found in a boat or recreational vehicles. The digital controller adjusts water flow as the demand is increased and decreased while maintaining a very smooth flow. The unique variable flow feature of the flow master pump allows the pump to be mounted without an accumulator tank and still maintain an even flow regardless if one or multiple taps are being used.
12V Part Number: 10-13329-03 - Fuse Size: 15A
24V Part Number: 10-13329-04 - Fuse Size: 8A
Specifications
Model
WPS
FM 5.0
Capacity
19LPM (95GPM)
Cut-Off Pressure
3.5bar/50psi
Dimensions
239mm long x 209mm wide x 113mm
high
Weight
2kg
Motor
WPS 5.0 - 150W (with built-in
thermal protection)
Body
Nylon/Polypropylene
Valves
Santoprene/EPDM
Diaphragm
Santoprene
Connection
3/8" BSP/hose 1/2",
1/2" BSP/hose 3/4"
What's in the Package?
Johnson Aqua Jet Flow Master 5.0GPM 12V Diaphragm Pump.
