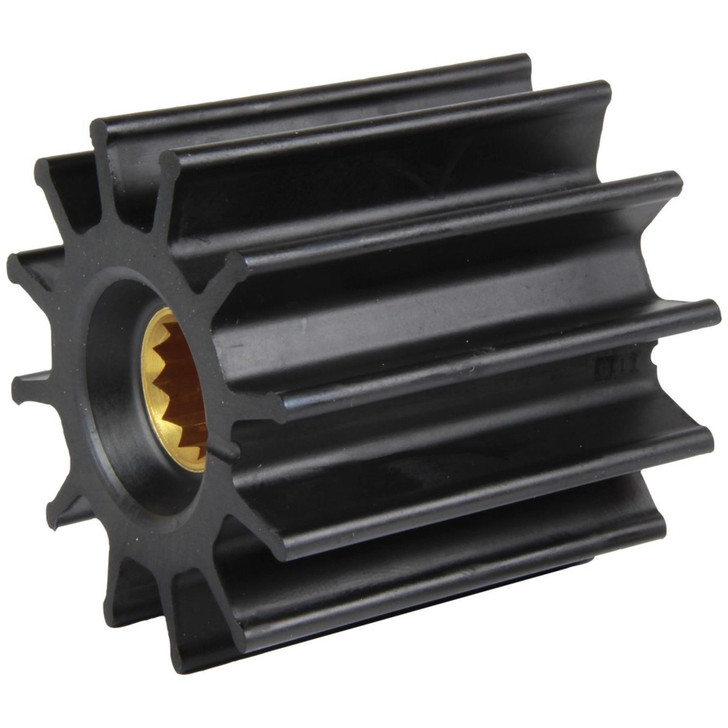

The genuine Johnson neoprene flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to some of the F9 range of Johnson Pumps which suits the impeller dimensions listed below, including:

• F9B-3600, F9B-3607, F9B-3620, F9B-3627, F9B-3630 and F9B-3637 pump models: 10-13026-4, 10-13026-5, 10-13026-6, 10-13026-10, 10-13026-11 & 10-13026-12.
• F9B-5, F9B-5600 (TSS/VF) and F9B-5607 pump models: 10-13027-63, 10-13027-98, 10-13027-99, 10-13178-99, 10-13226-99 & 10-24161-1.
• F9B-9, F9B-902, F9B-903 and F9B-905 pump models: 10-13080-01, 10-13087-01, 10-13095-01, 10-13095-02, 10-13166-01, 10-13171-01, 10-24006-1, 10-24006-2, 10-24006-3, 10-24006-4, 10-24159-1, 10-24159-2, 10-24308-01, 10-24308-02, 10-24308-03 & 10-24430-01.
• Volvo Penta pumps: 846105 & 3837935.
• Scania pumps: 1785016, 1785018 & 1785244.
• Orbitrade pumps: 17935.

The Johnson flexible pump impeller has twelve blades and is supplied complete with lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-814B can be used to replace the Jabsco 21676-0001 Europe and 17936-0001 USA flexible impellers as well as Volvo Penta 875814 and Orbitrade 15814.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.

The impeller is fitted as standard to the following engines:

• Mercedes OM424
• Mitsubishi S6M3
• Scania D11M01, D14, DN9, DN11, DS11, DS14, DSI11, DSI11M01 & DSI14
• Volvo Penta TAMD102A, TAMD102D, TAMD103A-A, TAMD120B, TAMD121C, TAMD121D, TAMD122A, TAMD122C, TAMD122D, TAMD122P-A, TAMD122P-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B, TAMD162C-C, TAMD163A, TAMD163A-A, TAMD163P & TAMD163P-A
• Yanmar 6SY-STP & 8SY-STP from 1997

As well as: Alaska Diesel L6140A, M6140A, Detroit Diesel 671TI, 871, 1271, Iveco-Aifo 8281 SRM44 & MTU Series 183.

How to remove an old impeller:

Remove the impeller with slip joint pliers or a Johnson Pump Impuller (Part Number 09-800)

How to fit a new impeller:

Lubricate the shaft and the inside of the pump body and the end cover. Use Johnson Pump Lubrication to help develop prime and prevent damage from dry-running the pump at initial start-up. Mount the impeller by making a pushing and twisting movement in the rotating direction. Lubricated impellers should not be stored for extended periods of time. The engine should be run after installation of a new impeller to wash out the lubrication. These recommendations apply to any service work on the pump and its components that require the use of lubrication inside the pump for assembly and start-up.

Warning! Do not use any petroleum-based products to lubricate the inside of the pump. Only use Johnson Pump Lubrication. Other products can damage the impeller which will damage the pump and lead to engine failure. Do not run the impeller without water or lubricant; this can cause engine failure or a fire.

• A vacuum is created as the flexible impeller vanes straighten upon leaving the cam drawing liquid into the pump.
• The rotating impeller carries liquid from the inlet to the outlet port. As a consequence of their design flexible impeller pumps can pass fairly large solids.
• When the flexible impeller vanes regain contact with the cam they bend and the liquid is discharged from the pump in a uniform flow. Liquids can be pumped in the opposite direction by reversing the rotation of the pump.
