PART NUMBER: 09-1028B

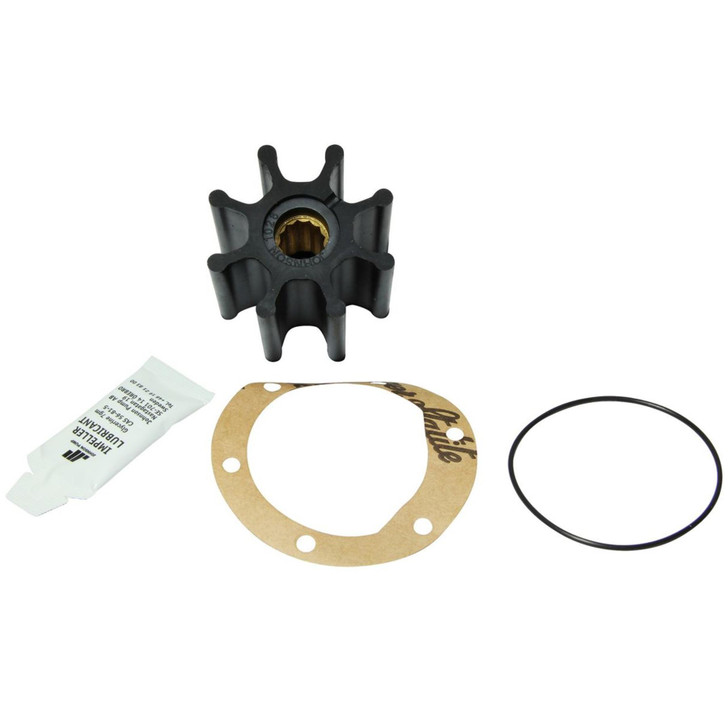

The genuine Johnson neoprene flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller has eight blades and is supplied complete with gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.
The Johnson 09-1028B flexible pump impeller is designed to be installed to some of the F7 range of Johnson Pumps, including the following:
The Johnson 09-1028B can be used to replace the Jabsco 17937-0001 and 920-0001 Europe / USA, Sherwood 18200 flexible impellers. For applications containing diesel or light oils, use Johnson nitrile impeller 09-1028B-9.
Engine Suitability for the Johnson 09-1028B Impeller:
It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.
This impeller is also fits engines: Ailsa Craig RF4, RK-Series, RA6, RAB6, Allis Chalmers 60-AMR-273, American Diesel 6 cyl, Bedford 330, BMW B 190/220, B 630/635, D 150/190, D 530TA, D 636TA, Burioli 2725, 2726 TM, 2728 TIM, CMD ATM100, HPE170, HPE200, HPE250, CT Marine CT 150, Dover 2725, DAF DP 680M, DS 575M, DT 575MY, DT 615MY, Diecon ED 6, FE6, John Deere 4039D, 4045T, 4045DFM70, 4045TFM75, 6068TFM75, 6068TFM76, PowerTech 4.5L, Powertech 6.8L, Drinkward Motoren DA475, DD575, DF615, OM352, OM352A, OM616, OM617, Dieseltechniek DTN X6M 88A, Ekstroem 4 DQ50, S4E2, S6E2, FJ Fay F2803EBG, N Gustavsson Motor 2704ET, 2726TM, 2728TIM, Hendy Lennox 2720, BSD666TI, Hino Motors W04C-T, W04C-T120/3000, W04D, W06D-T1 250/3000, Indu Marin 2704ET, 2726TM, 2728TIM, Iveco 513, 806SM, 8060MSD, 8061M, 8061SM/SRM, 821M, 8210M, 8220M, 8280M/SRM, 8361M/SM, 8361SRM, CO2DM, CO3M, CP3M/SM, OMCP3M, Kohler 33EFOZ, 40EOZ, 55EFOZ, 65EOZ, 70EFOZ, 80EOZ, 80EFOZ, 99EOZ, Lister Petter 2722 CS4, 2725 CS6, Lombardini LDW 1204 MD, LDW 1204 Turbo, LDW 2004 M, LDW 2004 MD, LDW 2204 MD, Lugger L-6414A, M.A.N. D0826LE40, JG Meakes JGM 4150D, JGM 6220D, N.E. Ford 6 cyl, N.E. Isuzu 6 cyl, Nedalo 2712E, 2715E, Peninsular Engines 8.2L, Rodahl Marin 2704ET, 2710, 2715, 2722, 2725, 2726, 2728, Sabb F 6.363 T, F 6.363 TI, F 6.595T, F 6.595TI, F 6.595TIP, Sabre 180, 212, Schlapkohl DTP75, DTP92, DTP106, SMP 6-cyl, Schwarting S314, S352, S352A, S636, Sole Diesel 6 cyl SM120, Steyr MO236-OMC, All 4/6 Cyl. from 1999, Telva Oy 2725E, 2726T, 2728TIM, Valmet Oy 311, 411, 411CM, 411CSM, VM Motori 114MH, 116MH, HR480 HT, HR488 HT9, HR492 H9, HR492 HT9, HR592 H9, HR592 HT9, HR688 HT9, HR692 H9, HR692 HT9, WM Diesel WM 68, WM 85T (Kubota V3300, V3300T), Vythoulcas D 4Q 50, S4.
How to remove an old impeller:
Remove the impeller with slip joint pliers or a Johnson Pump Impuller.
Part Number 09-800
How to fit a new impeller:
Lubricate the shaft and the inside of the pump body and the end cover. Use Johnson Pump Lubrication to help develop prime and prevent damage from dry-running the pump at initial start-up. Mount the impeller by making a pushing and twisting movement in the rotating direction. Lubricated impellers should not be stored for extended periods of time. The engine should be run after installation of a new impeller to wash out the lubrication. These recommendations apply to any service work on the pump and its components that require the use of lubrication inside the pump for assembly and start-up.
Warning! Do not use any petroleum-based products to lubricate the inside of the pump. Only use Johnson Pump Lubrication. Other products can damage the impeller which will damage the pump and lead to engine failure. Do not run the impeller without water or lubricant; this can cause engine failure or a fire.
1. A vacuum is created as the flexible impeller vanes straighten upon leaving the cam drawing liquid into the pump.
2. The rotating impeller carries liquid from the inlet to the outlet port. As a consequence of their design flexible impeller pumps can pass fairly large solids.
3. When the flexible impeller vanes regain contact with the cam they bend and the liquid is discharged from the pump in a uniform flow. Liquids can be pumped in the opposite direction by reversing the rotation of the pump.
Material | Neoprene |
Primary Construction | MC97 |
Suitable For | Beta Marine|BMW|Bukh|Caterpillar|Cummins|Ford|Isuzu|John Deere|Johnson Evinrude|Kohler|Kubota|Lister|Lombardini|Mariner|Mercedes|Mercruiser|Mercury|Mermaid|Nanni|Perkins|Thornycroft|Vetus|Volvo|VM|Yanmar |
Impeller Shaft Diameter | 16mm |
Number of Impeller Blades | 8 |
Drive Type Description | Spline Drive |
Replaces | Jabsco 17937-0001 & 920-0001, Sherwood 18200 Impellers |
Brand | Johnson |
Application | Some F7B Johnson Pumps, Please See the Description for Full Suitability |
Model | 09-1028B |
Depth | 50.2mm |
Diameter Description | 65mm, ID: 16mm |
