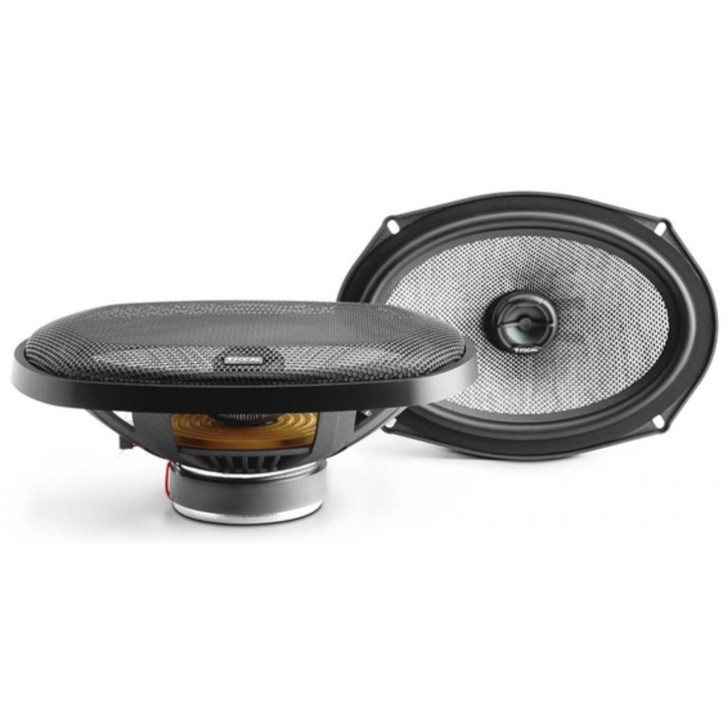

The Access 690 AC coaxial kit has been designed to reproduce deep bass throughout your vehicle. It will be equally at home in your car's doors or parcel shelf *. As with the other products in this range, its built-in filter means you can quickly connect your kit to a car stereo or power amplifier from our Performance range.
* depending on oem fittings.
Watts and robustness
POWER ABOVE ALL
With these speakers and their high rated power, you can enjoy quality sound in your vehicle. The Kapton-mounted dual-layer 30mm coil guarantees high power handling and distortion-free sound reproduction.
Power handling, great bass and acoustic performance remain the common denominators of the Access philosophy, which has marked its users from all over the world for more than the last ten years.
DFS cone
POWER HANDLING
DFS� technology features robust and reliable cones. Composed with two 90� woven glass fibres and insulated with polyurethane, it resists to extreme acoustic environments and harsh weather conditions.
The cone have great power handling, and deep bass.
MODERN APPEARANCE
From a visual standpoint, this new product line is resolutely more modern: doped ABS basket structure, integral terminal block, new tweeter design, contoured grilles, etc.
WHAT MAKES THE DIFFERENCE
Cone DFS(Dual fiberglass Structure)
(climatic and power) high resistance
High power handling and heavy bass
Rotativ tweeter
Specifications
Woofer
6x9" (164x235mm)
Voice-coil diameter
13/16" (30mm)
Voice-coil height
07/16" (11mm)
Magnet
39/16" (90mm)
Tweeter
Aluminum inverted dome
Crossover
(4,7Khz) 6dB/oct
Max. power
150 Watts
Nom. power
75 Watts RMS
Sensitivity (2.83V/1m)
91.3dB
Frequency response
50Hz � 20kHz
Accessories
Supplied grilles
Nominal power
75W
Maximum power
150W
Sensitivity (2,83V/1m)
91.3dB
Cone
Glass fiber
Surround
Butyl
Nom. impedance
4 Ohms
DC resistance
3.8 Ohms
VC diameter
30mm 13/16"
VC height
10mm 03/8"
Former
Kapton
Layers
2
Wire
Copper
Inductance
Xmax � 2.5mm 01/8"
Magnet d x h
90mm x 17mm 39/16 X
02/3"
Magnet weight
400g 0.8 lbs
Flux density
1T
Gap height
6mm 01/4"
Net weight
1.05kg 2.10 lbs
What's in the Package?
Focal 690 AC Genuine Car Audio Speaker Pair
Comes in Retail Packaging so makes a Great Gift.
Buy with Confidence & All Purchases come with a VAT Receipt by email.
