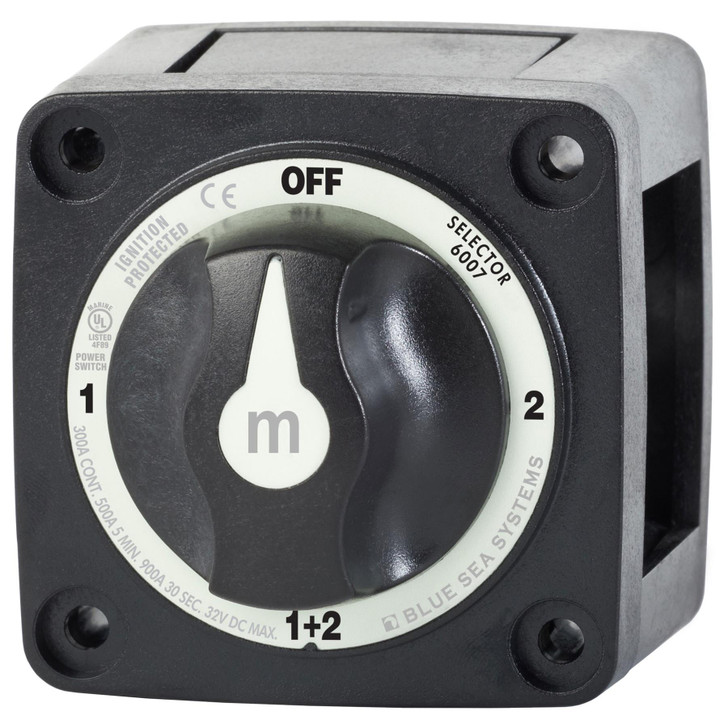

Blue Sea Systems M-Series Mini Selector Battery Switch

(No reviews yet) Write a Review

Current Stock: 6

£49.99

RRP: £53.57

You save £3.58

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

N/A

N/A

PART NUMBER: 8-26007200

Switches isolated battery banks to all loads or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption
300 Ampere continuous rating for outboards and small gasoline or diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
One-piece terminal stud design never loosens over time
7/8" (22.22mm) stud length accepts multiple cable terminals
Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
Case design allows surface, rear, or front panel mounting options Regulatory
CE marked, ISO 8846
UL Listed - UL 1107 electric power switches
Meets ABYC requirements
Meets UL1500 and SAE J1171 external ignition protection requirements
IP66 protects against powerful water jets
Paralleling Link BUS 8-29159

Brand	Blue Sea Systems
Switch Type	Selector 4 Position
Color	Black
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 min)
Cranking Rating 30 sec	900A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
