High Interrupt Rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
Clear window - blown visual indication
Colour coded for each amperage
Regulatory - Terminal Fuses
Meets SAE J1171 external ignition protection requirements IP66 - protected against powerful water jets ABYC E-11.12.1.1. 1. Each ungrounded conductor connected to a battery charger, alternator, or other charging source, shall be provided with over current protection within a distance of seven inches (175mm) of the point of connection to the DC electrical system or to the battery.
Specifications
Amperage
100A
Ignition Protected
Yes
Maximum Voltage
58V DC
Interrupt Capacity
10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC
Weight
0.06lb (0.03 kg)
What's in the Package?

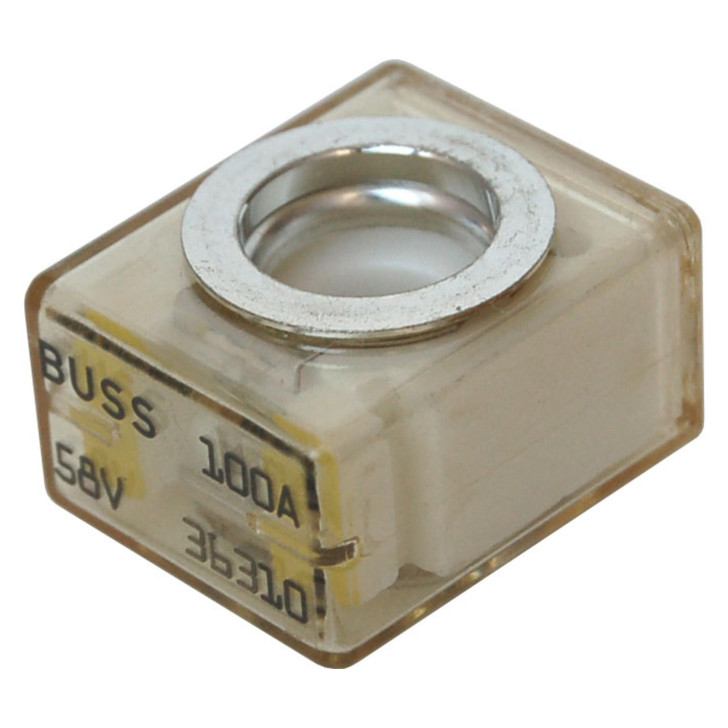

Blue Sea Systems 5183 MRBF Terminal Fuse - 100A
