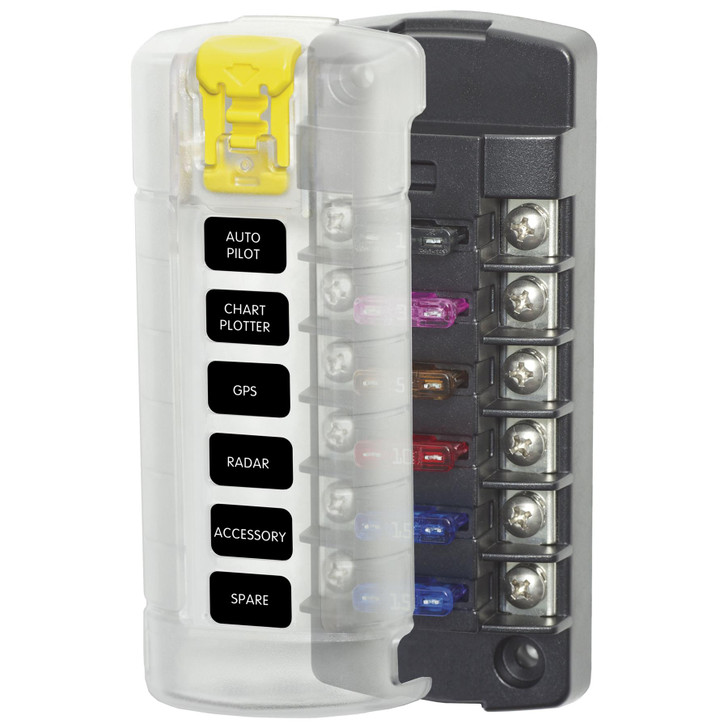

ST Blade Fuse Blocks Screw Terminal Compact ATO/ATC fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.
Can be used for 24-hour circuits
Clear insulating cover with label recesses accepts Small Format Labels
Cover satisfies ABYC/USCG insulation requirements
Accepts ring terminals
Easy to open, push button latch provides easy access to fuses
Tin-plated copper buses and fuse clips
Fuse Blocks with covers include 20 write-on circuit labels
Fuses sold separately
Specifications
Circuits
6
Maximum Amperage
30A per circuit 40A per jumped circuit group
Maximum Voltage
32V DC
Mounting
#8 Screw (M4)
Screw Terminal Torque
18 in-lb (2.03 Nm)
Screw Terminal Type
#8-32 with Captive Star Lockwasher
Weight
0.35lb (0.16 kg)
What's in the Package?
Blue Sea Systems 5035 ST Fuse Block
