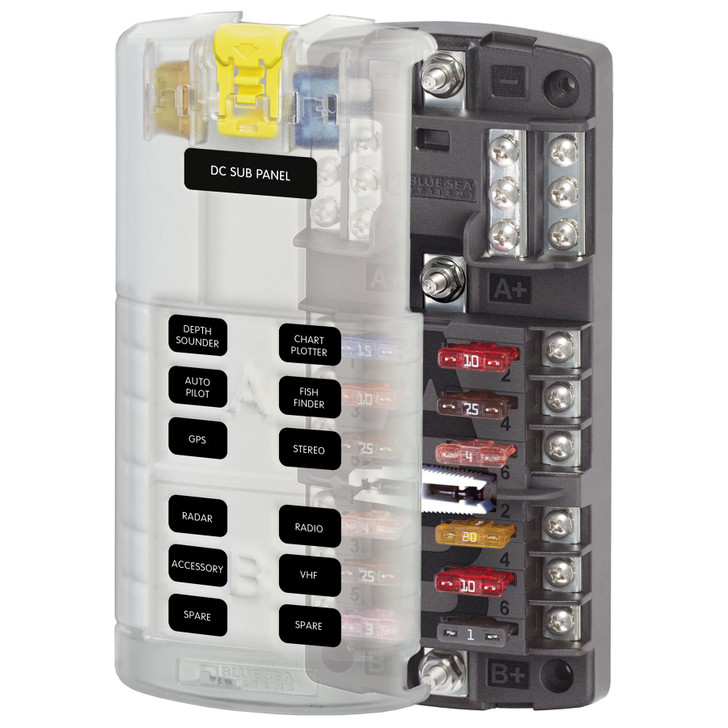

Blue Sea Systems 5032 ST Blade Split Bus Fuse Block

(No reviews yet) Write a Review

Current Stock: 3

£89.97

RRP: £99.49

You save £9.52

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

N/A

N/A

PART NUMBER: 8-25032

Split ATO/ATC fuse block with ground and insulating cover. For use when a mix of switched and 24-hour circuits are desired in the same block.
Provides two isolated groups of six ATO/ATC circuits
For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Screw terminals for securing wires accept ring terminals
One-piece stainless flange nuts ensure safe and secure connections
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
Easy to open, push button latch for easy access to fuses
Tin-plated copper buses and fuse clips
Fuses sold separately
12 Circuits
Supplied with cover
Negative Bus #10-32 stud
Positive Bus #10-32 stud

Circuits	12
Maximum Amperage	30A per circuit 100A total
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 N�m)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
