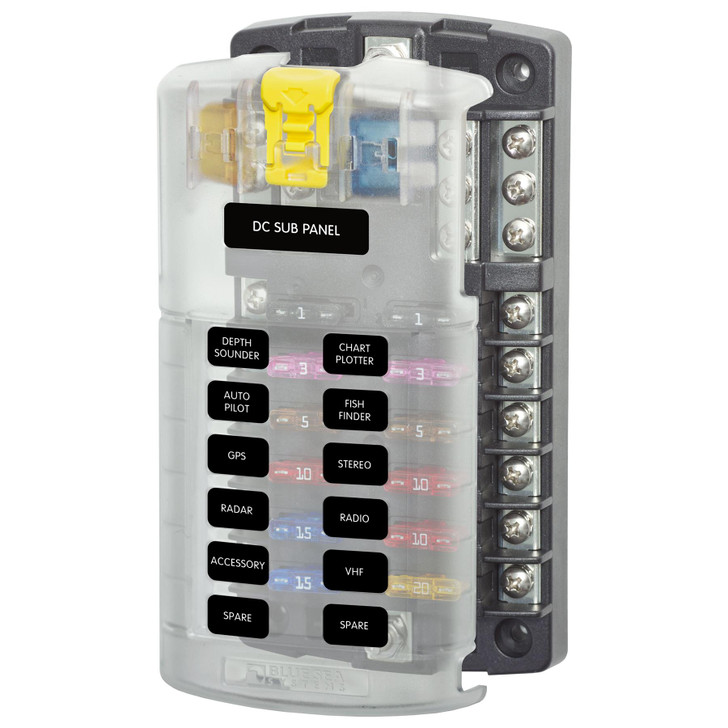

Blue Sea Systems 5026 ST Blade Fuse Block

(No reviews yet) Write a Review

Current Stock: 30

£62.88

RRP: £68.38

You save £5.50

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

N/A

N/A

PART NUMBER: 8-25026

ST BLADE FUSE BLOCKS (Screw Terminal) Common Sourced
Compact ATO/ATC fuse block consolidates branch circuits and eliminates the tangle of in-line fuses
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
Accepts ring terminals
Easy to open, push button latch for easy access to fuses
Tin-plated copper buses and fuse clips
Fuse blocks with covers include 20 write-on circuit labels
Fuses sold separately
Recommended Torque: 24 in-lb (2.71 Nm)
Screw Terminal Torque: 18 in-lb (2.03 Nm)

Circuits	12
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 N�m)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
