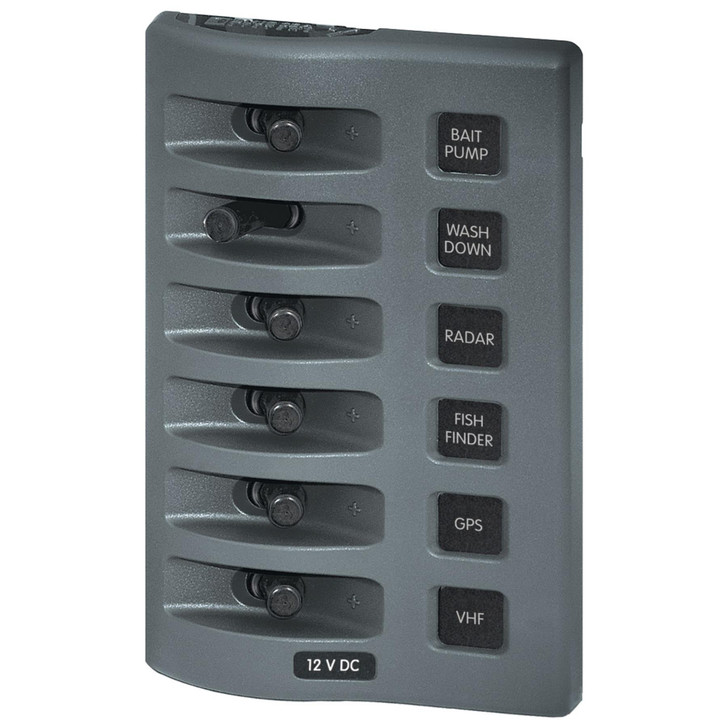

Blue Sea Systems 4307 6-Position WeatherDeck Switch Panel
PART NUMBER: 8-24307
Description
WEATHERDECK WATERPROOF PANELS
Designed for flybridge and open cockpit applications
Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck Switch Panel has all the rugged features of the proven WeatherDeck Panel family however does not have the added cost of backlighting and circuit protection.
Integrated switch guards reduce the risk of accidental switching
Panel can be mounted in four different orientations
Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 � protected against immersion up to 1 meter for 30 minutes
UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws
Specifications
Weatherproof
Waterproof
Positions
6
Nominal Voltage
12V DC 24V DC
Circuit Protection
None
Maximum Amperage
15A @ 12V DC (per circuit)
Panel Cumulative Rating
45A
Material
Reinforced Polycarbonate
What's in the Package?
Blue Sea Systems 4307 6-Position WeatherDeck Switch Panel
