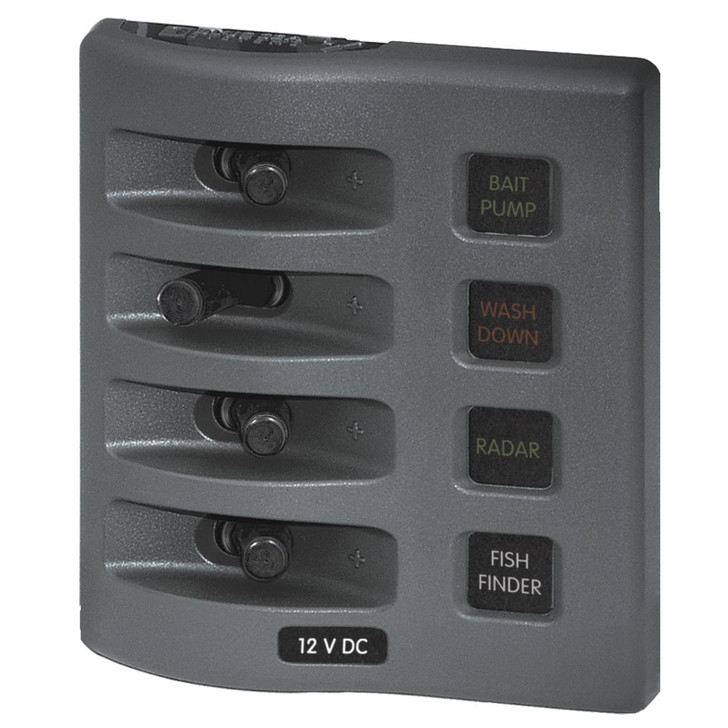

Blue Sea Systems 4304 4-Position WeatherDeck Fuse Panel
PART NUMBER: 8-24304
Description
WEATHERDECK WATERPROOF PANELS
Designed for flybridge and open cockpit applications
Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 - protected against immersion up to 1 meter for 30 minutes
Independent label backlighting circuit for remote switching and dimming
Panel can be mounted in four different orientations
Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Colour) circuits. No lights in any position likely indicate there is no power to the panel.
Fuse Compatibility: 1A - 30A
Specifications
Weatherproof
Waterproof
Positions
4
Nominal Voltage
12V DC
Circuit Protection
Fuse
Maximum Amperage
15A @ 12V DC (per circuit)
Panel Cumulative Rating
60A
Backlit Label
Bicolored LED
Backlighting Amperage
10mA /Illuminated Circuit
Backlighting Voltage
12V DC
Material
Reinforced Polycarbonate
What's in the Package?
Blue Sea Systems 4304 4-Position WeatherDeck Fuse Panel
