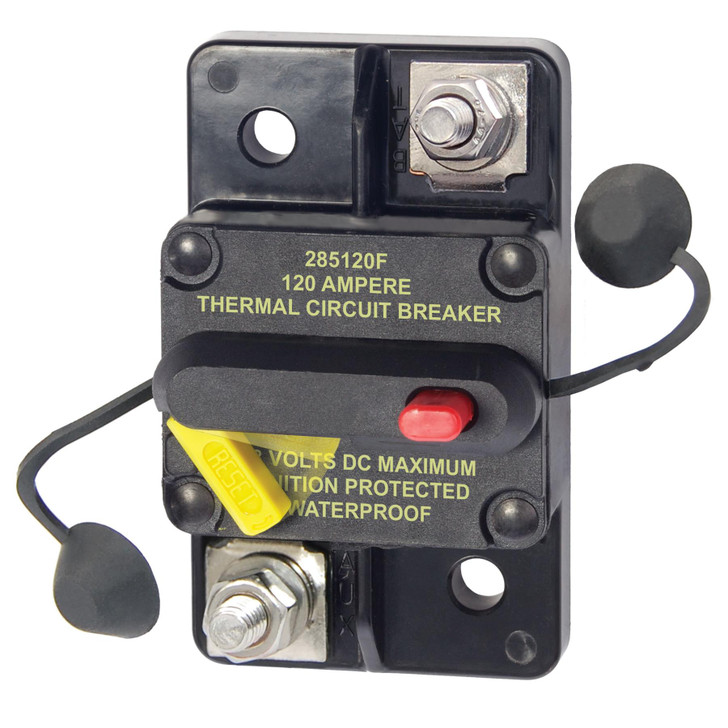

Blue Sea Systems 285-Series Circuit Breaker

(No reviews yet) Write a Review

Current Stock: 9

£56.54

RRP: £62.81

You save £6.27

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

N/A

N/A

PART NUMBER: 8-27188

Provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required.
Trip-free - cannot be held closed after trip.
Visible reset lever shows open condition.
Drop-in replacement for 185-Series Circuit Breakers.
Regulatory.
CE marked.
Meets SAE J1171 external ignition protection requirements, �AIC ratings achieved using SAE J1625.
IP67 - protected against immersion up to 1 meter for 30 minutes.
Ignition protected - Safe for installation aboard gasoline powered boats.
Meets SAE J1171 external ignition protection requirements.
Weather Resistant.
Combines switching and circuit breaker function into one unit*.
"Trip Free" - cannot be held closed after trip.

* Do not use as a switch where high inrush currents are expected.

Brand	Blue Sea
Amperage	120A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud	M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40� C
Maximum Operating Temperature	85� C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
