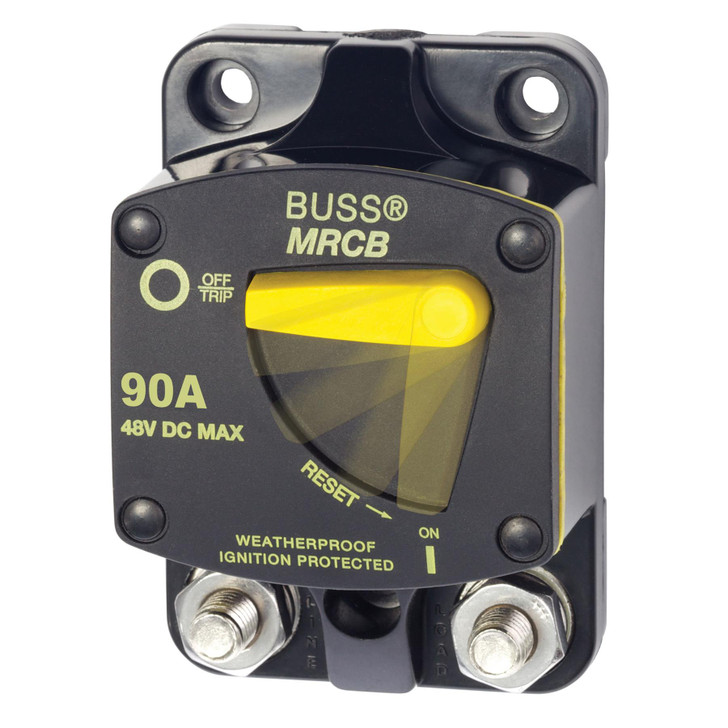

Blue Sea Systems 187-Series Marine Circuit Breaker - 90A

(No reviews yet) Write a Review

Current Stock: 6

£99.64

RRP: £112.91

You save £13.27

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

N/A

N/A

PART NUMBER: 8-27143

Combines switching and circuit protection into a single device.
Clear, single lever operation.
"Trip Free" design cannot be held "ON" during fault current condition.
Waterproof.
Recessed mounting holes for clean appearance.
Large Clearance around terminal studs accept heavy gauge wire lugs.
Robust 5/16 M8 terminals provide high torque connections.
Large lever with vertical/horizontal orientation provides indication of trip status.
Ignition protected - Safe for installation aboard gasoline powered boats.
Meets SAE J1171 external ignition protection requirements.

* Do not use as a switch where high inrush currents are expected.

Brand	Blue Sea Systems
Amperage	90A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud Torque	75 in-lb (8.47 Nm)
Interrupt Capacity	5000A 14VDC
	3000A 28VDC
	1500A 48VDC
Minimum Operating Temperature	-40� C
Maximum Operating Temperature	85� C
Case Material	Thermoset Polyester
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Mounting Hole	Accept #10 (M5) Screw
Terminal Stud Size	5/16" - 18
