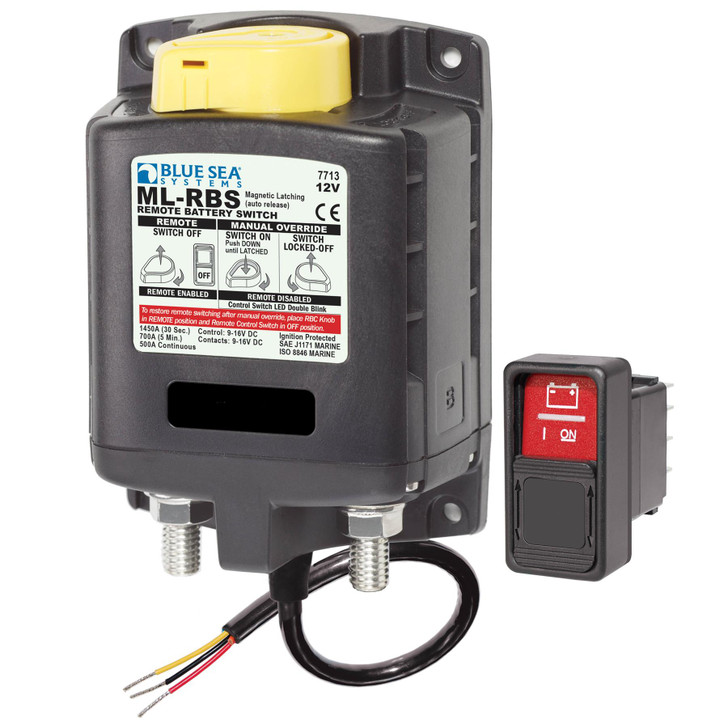

PART NUMBER: 8-27713
Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.
| Brand | Blue Sea Systems |
| Control Circuit Voltage | 10.1 to 16.5V DC |
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Coil Function | Auto-Releasing |
| Mounting | #10 |
| Amperage Operating Current | 8mA when OFF |
| 13mA when ON | |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10 C |
| Maximum Operating Temperature | 60 C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
