Blue Sea ML-ACR ML Series Automatic Charging Relay
PART NUMBER: 8-27620
Description

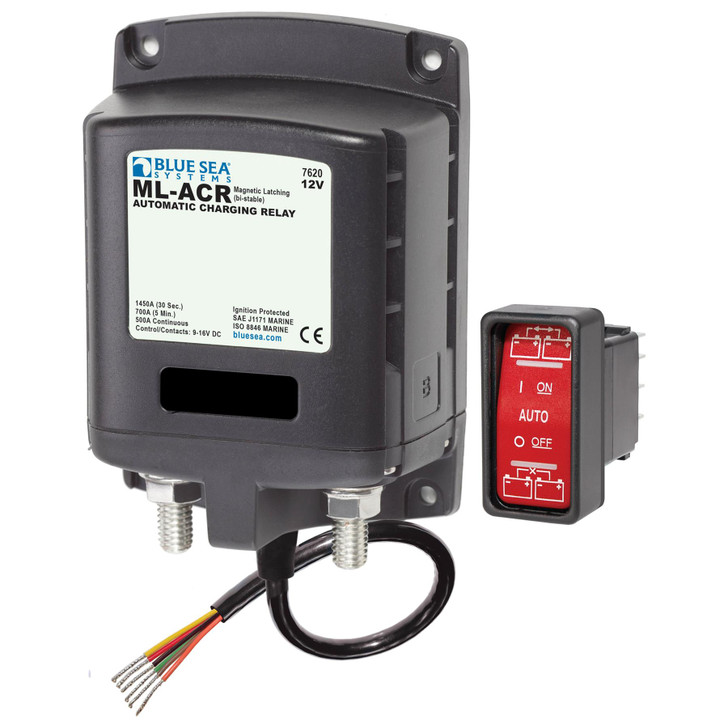

ML-ACR Automatic Charging Relay - 12V DC 500A - 7620
The ML-ACR (Automatic Charging Relay) and ML-RBS (Remote Battery Switch), when paired, offer complete battery management of large battery banks with the push of a button. In addition to automatically sharing the charge from an engine�s alternator between the start and auxiliary battery, the ML-ACR control switch provides momentary battery combining to assist with starting in the event of a low engine battery. Multiple remote battery switches can be easily connected to the ML-ACR with the optional Paralleling Link Bus for a complete remote battery management Subsystem.
500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.
Features
Includes ML-Series Remote Control Contura Switch PN 2146.
Automatically manages the charging of two large battery banks.
Allows paralleling of battery banks for emergency starting.
500 Ampere continuous rating to support high-output alternators.
Magnetic Latch (ML)�ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state.
Dual sensing�senses charge on both battery banks.
Start Isolation (SI)�can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics.
Engine Isolation (EI)�can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output.
Senses charging on two battery banks.
Specifications
Brand
Blue Sea
Control Circuit Connection
Tinned Wire
Nominal
Voltage
12V DC
Manual
Control
No
Engine
Isolation
Yes
Mounting
#10
Start
Assist
Yes
Start
Isolation
Yes
Amperage
Operating Current
13mA
Amperage
Operating Current when changing state
<7.0A
Terminal
Stud Torque
140 in-lb
(15.82 Nm)
Continuous
Rating
500A
Intermittent
Rating
700A (5 min)
Cranking
Rating 30 sec
1450A DC
Minimum
Operating Temperature
-10� C
Maximum
Operating Temperature
60� C
Cable
Size to Meet Ratings
4/0 AWG x 2
Live
Current Switching
300A @ 12V DC
Stud
Material
Tinned Copper
Switching
Cycles
100000
Terminal
Ring Diameter Clearance
1.12in (28.45
mm)
Terminal
Stud Length
1.50in (38.1
mm)
Terminal
Stud Size
3/8" -
16 (M10)
Series
ML-ACR
Wire Size
20 AWG
Relay Contact Position
Combine
30 sec
13.5V
Combine
90 sec
13.0V
Open 10
sec
12.35V
Open 30
sec
12.75V
Open High
16.2V
