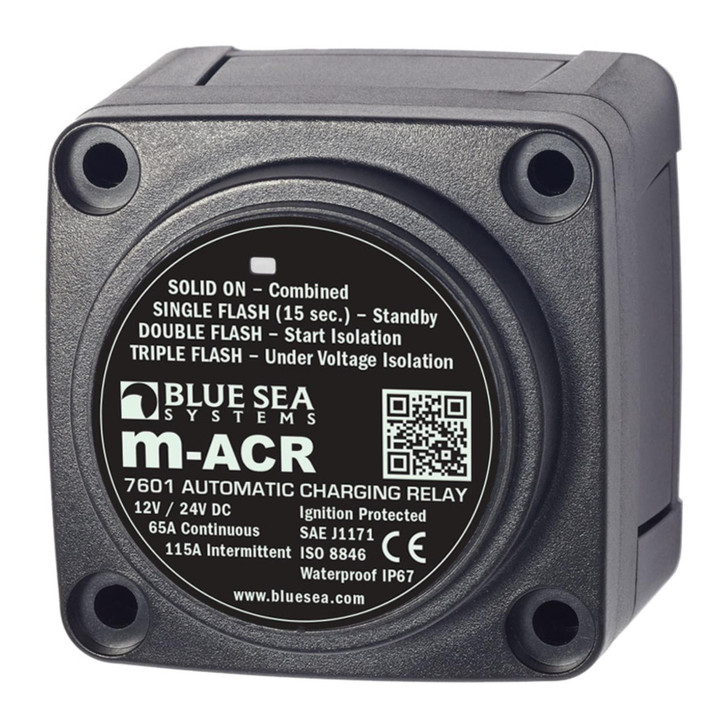

Blue Sea m-ACR Series 12 - 24V Automatic Charging Relay
PART NUMBER: 8-27601
Description
m-Series Automatic Charging Relay - 12/24V DC 65A - 7601
The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.
Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.
The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.
Features
Senses charging on two battery banks.
Pull off and snap on insulating cover.
LED indicates ACR status.
1 ?4" x .032" male quick connect terminal for ground.
Specifications
Brand
Blue Sea Systems
Nominal Voltage
12V DC -
24V DC
Start
Isolation
Yes
Amperage Operating Current
90mA
(Combine)
15mA (Open)
Terminal
Stud Torque
60 in-lb
(6.78 Nm)
Continuous
Rating
65A
Intermittent
Rating
115A (5 min)
Cable
Size to Meet Ratings
6 AWG
Maximum
Cable Size
1/0 AWG
Stud
Material
Tinned Brass
Terminal
Stud Size
1/4" -
20 (M6)
Relay Contact Position
Combine
30 sec
13.6V DC
Open 10
sec
12.35V DC
Open 30
sec
12.75V DC
Open High
16.0V
Under
Voltage Lockout
9.5V
What's in the Package?
Blue Sea m-ACR Series 12 - 24V Automatic Charging Relay.
Comes in Retail Packaging so makes a Great Gift.
Buy with Confidence & All Purchases come with a VAT Receipt by email.
