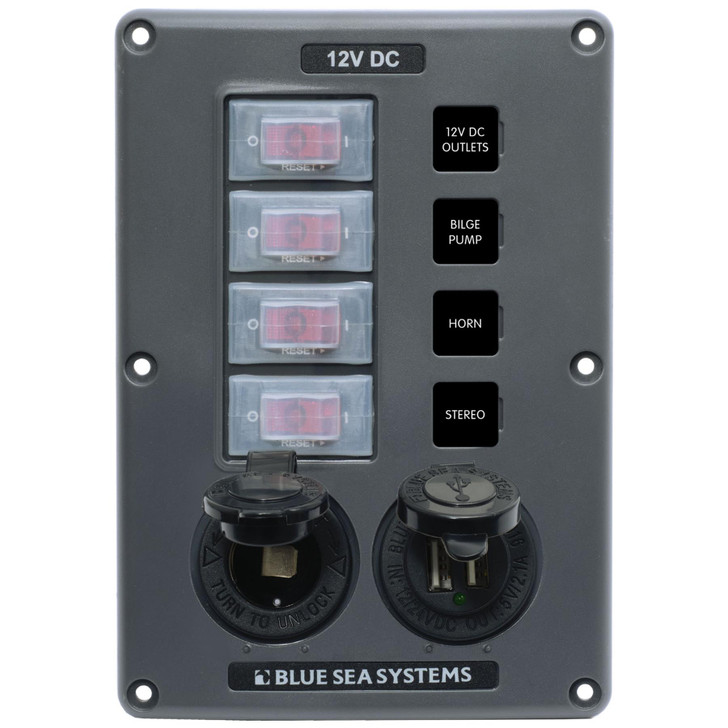

Blue Sea 4 Position Circuit Breaker Switch Panel with 12V Socket & USB Charger
PART NUMBER: 8-24321
Description
Designed for exposed mounting applications
Illuminated 15A circuit breakers provide switching, ON indication and overcurrent protection
Industry-standard sizes and mounting allow these panels to be easily retrofitted in an existing application
Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
Silicon breaker boots and gasket protects against water ingress
Low profile makes it easy to install in tight spaces
Fast-on circuit breaker connectors make it quick to wire
Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Regulatory: Panel front is IP66 when mounted with gasket in place - protected against powerful water jets.
Specifications
Color
Grey
Positions
4
Nominal Voltage
12V DC
Maximum Amperage
45A
Terminal Type
1/4" Male quick connect
Hardware
Stainless Steel #6 x 5/8" mounting screws
Ring Terminal Size
M5 (#10)
Height
6.625in (168.28 mm)
Width
4.625in (117.48 mm)
Depth
1.75in (44.45 mm)
What's in the Package?
Blue Sea 4 Position Circuit Breaker Switch Panel with 12V Socket & USB Charger
