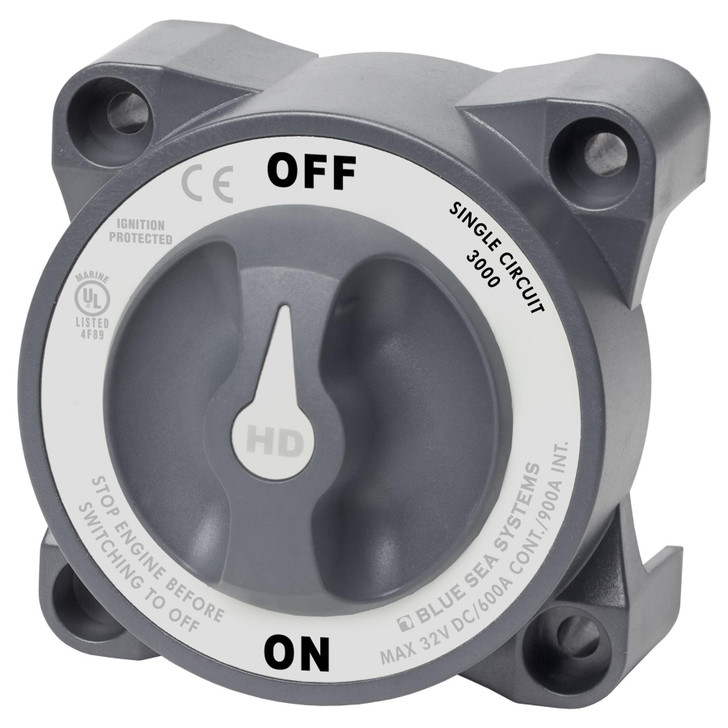

Blue Sea 3000B HD Heavy Duty On-Off Battery Switch - 600A

(No reviews yet) Write a Review

Current Stock: 10

£79.42

RRP: £88.91

You save £9.49

Quantity:

DISPATCHED IN 5 WORKING DAYS

Or

N/A

N/A

PART NUMBER: 18-23000/1

HD BATTERY SWITCH (Heavy Duty) Up to 600 Ampere continuous rating for large diesel engines.

Label with international legends.

Tactile indicator conveys knob position by feel.

Accepts up to 4/0 AWG (120mm2) battery cables.

Case design allows surface or rear panel mounting.

7/8" (22mm) stud length accepts multiple cable terminals.

One-piece terminal stud design never loosens over time.

M12 tin-plated copper studs for maximum conductivity & corrosion resistance, accepts 1/2" (M12) ring terminals.

Brand	Blue Sea Systems
Switch Type	Single Circuit ON-OFF
Color	Grey
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC Maximum
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	600A
Intermittent Rating	900A (5 min)
Cranking Rating 30 sec	1750A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables
Cable Size to Meet Ratings	4/0 AWG (120mm�)
Mounting Holes	Accept 1/4" (M6) Screw
Terminal Stud Size	1/2" (M12)
Amps	Continuous: 600A, Intermittent (5 minutes): 900A, Cranking (10 seconds): 2750A
Approvals	CE marked, ISO 8846, UL Listed UL 1107 electric power switches, Meets ABYC requirements, Meets UL1500 & SAE J1171 external ignition protection requirements
Protection Rating	IP66 protects against powerful water jets
