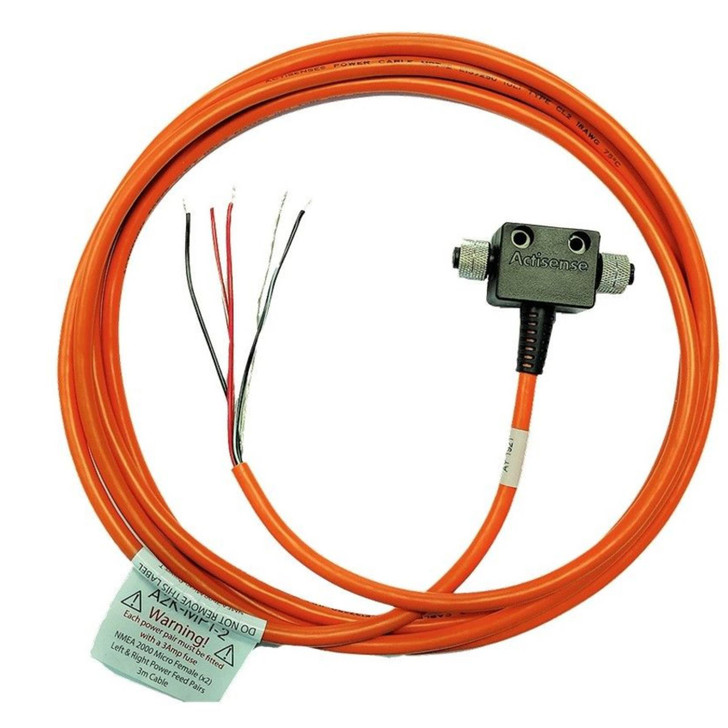

Actisense A2K-MPT-2 NMEA 2000 Micro Power T-Piece Cable - 3m
PART NUMBER: 005-A2K-MPT-2
Description
The A2K-MPT-2 is a simple, safe and efficient method of powering an NMEA 2000 network and features an improved strain relief.
The Micro Power T can easily provide power to the NMEA 2000 bus with micro fit connectors to enable �plug and play� connectivity. The Power T provides two seperate power feeds to split the networks power demands and increase reliability.
The Actisense designed connectors are quality engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.
The Actisense specified cable is UL certified, the three-metre cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.
Features
Rated Current: 2 x 4A
Rated Voltage: 60VDC
IP Protection: IP67
Cable Length: 3M
Specifications
Electrical
Rated Current
4A (each feed)
Rated Voltage
60VDC
Mechanical
Female Contact
Phosphor bronze, gold plated
Contact Carrier
PA66 (30% Glass Filled), Black
Contact Polarisation
Standard M12 -�A�- polarisation
Mating Thread
M12
Screw Cap
Brass, nickel plated
O-Ring Seal
Rubber, black
Housing
PVC, black
Cable Jacket Material
0.8mm Nom. PVC, orange
Cable Outer Diameter
6.7mm �0.254mm
Cable Length
3M
Wire Length
100mm (7mm stripped)
Wire Jacket
PVC
Wires
18 AWG (stripped and tinned)
Drain
18 AWG (34 strand tinned copper)
Shield
Al-mylar
Weight
290g
Approvals and Certifications
NMEA 2000 Approved
RoHS Compliant
UL Certified Cable (E137250)
Protection
IP67 (when mated)
Operating Temperature
-20�C to +70�C
Storage Temperature
-40�C to +85�C
What's in the Package?
Actisense A2K-MPT-2 NMEA 2000 Micro Power T-Piece Cable - 3m
